LoRaWAN in Practice – Building Ultra-Low Power, Long-Range IoT Devices

Not every IoT device needs to stream video or transfer megabytes of data. In many cases, products only need to send a few bytes—a temperature reading, a GPS coordinate, a soil moisture level, and do so reliably over years of battery life.

That’s the niche where LoRaWAN excels. At SGW Designworks, we’ve integrated LoRaWAN into products for agriculture, smart cities, and even confidential wildlife-monitoring applications. Here’s what we’ve learned from real deployments.

What Is LoRaWAN?

LoRaWAN is a low-power wide-area networking protocol built on LoRa modulation. It operates in unlicensed sub-1 GHz bands and is optimized for long range and small payloads.

Key attributes include:

• Extreme range – up to 15 km in rural environments.
• Ultra-low power – devices can run for years on a coin cell.
• Scalability – thousands of devices per gateway.
• Ownership – companies can deploy their own networks without recurring cellular fees.

Why It Matters

LoRaWAN solves problems that neither Wi-Fi nor cellular address well. It enables:

• Wide-area coverage without carrier dependence.
• Low-cost deployment using inexpensive modules.
• Long-term autonomy in remote or hard-to-service locations.

Engineering Realities

Building with LoRaWAN requires specialized RF expertise.

• Module integration: Common chipsets (like Semtech’s SX1276) connect via SPI to microcontrollers.
• Antennas: At 868/915 MHz, antenna size and placement directly impact performance.
• Duty cycle compliance: Regulations limit airtime in ISM bands.

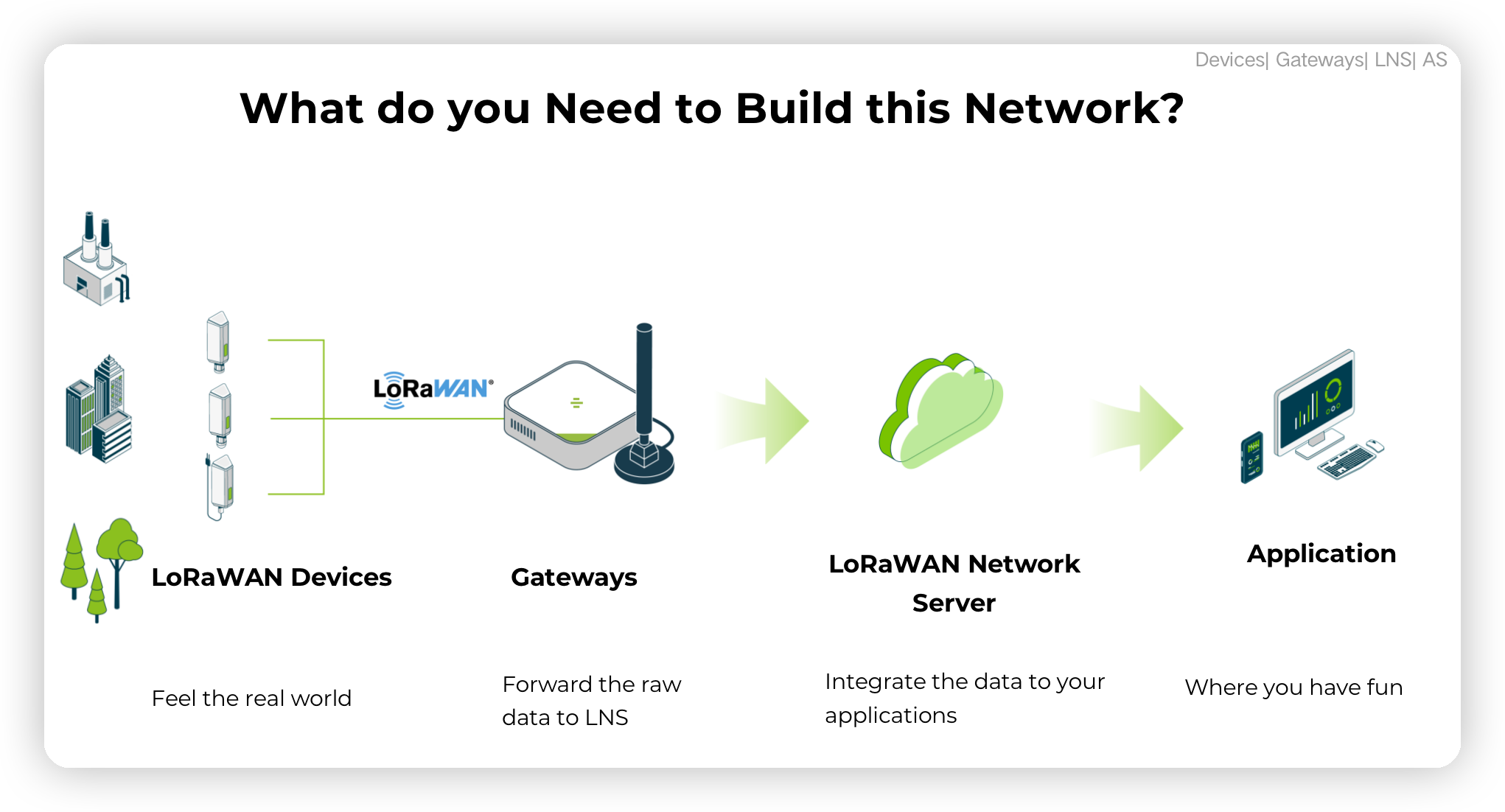

• Network setup: Devices connect to gateways, which forward data to backend servers such as ChirpStack or The Things Network.

Field Testing: The “Antenna Safari”

Specs say one thing, but our field tests tell another. We deploy nodes, drive or walk them away from gateways, and log packet success.

• Urban tests often yield ranges of a few kilometers at best.
• Rural tests can exceed 10 km with clear line of sight.
• Debugging requires gateway logs, server monitoring, and spectrum analyzers—not simple pings like Wi-Fi.

This kind of real-world validation is crucial for designing products that meet client expectations.

Lessons Learned

Some insights only come from experience:

• Published ranges are optimistic—especially in dense cities.
• Interference in the ISM band is common and must be managed.
• Onboarding requires careful UX design, since devices must join networks with secure keys.

Where LoRaWAN Fits Best

LoRaWAN is particularly suited for:

• Smart agriculture sensors across fields.
• Smart city infrastructure (streetlights, water meters).
• Asset tracking across large areas.
• Environmental and wildlife monitoring where batteries must last years.

The SGW Perspective

LoRaWAN isn’t a one-size-fits-all solution. It shines when applied to the right problem. Our role is to help clients identify those problems, design for them, and validate performance in the field.

When used correctly, LoRaWAN is a powerful enabler of IoT. With the wrong design choices, it can disappoint. That’s why real-world expertise matters.
