Why Design for Manufacturing Matters Before Tooling

A successful prototype can make the next step feel obvious. The product works, the team has evidence, and tooling may seem like the natural next step.

That moment brings momentum, but it also calls for a careful shift in perspective. A prototype shows that a product can work under specific conditions. Tooling asks whether the design can hold up when a supplier must repeatedly produce the same result.

That’s why design for manufacturing matters before tooling. This stage gives product teams a way to move from a promising prototype toward a production-ready design without treating those phases like the same milestone.

Tooling Raises the Cost of Unclear Decisions

Early development gives teams room to adjust. A prototype can change quickly because the process usually supports iteration. That flexibility helps the team test function, find weak spots, and narrow the product direction.

Tooling changes the cost of uncertainty. Once a tool exists, even a small design change can affect timing, supplier work, or launch planning. A feature that seemed harmless during development may create release problems in production. A dimension that looked safe on a drawing may make assembly harder than expected.

At this stage, the team can address those risks while the design still has room to move. The work doesn’t push manufacturing ahead of product performance. It protects the design elements that matter while preparing the product for real production.

Why This Timing Matters

Pre-tooling work gives the team a chance to catch problems before they become part of the production plan. It also helps teams avoid rushing from prototype confidence into tooling decisions that still need engineering review.

Prototype Success Doesn’t Equal Tooling Readiness

A successful prototype answers real questions. It can show that the product works, that the technical direction makes sense, and that the team has earned the next stage of investment. Those answers matter, but tooling asks something different.

The team must understand how the design performs in production. A prototype might employ methods suitable for early development but not for final manufacturing, concealing decisions that need review before tooling.

The manufacturing review should occur after core prototype validation, once the design direction is stable. At that point, design for manufacturing provides the team with a structured way to review the product as a production candidate before tooling proceeds.

How Late-Stage Samples Fit

Late-stage samples may still help after manufacturing-focused changes begin. Their role changes, though. Instead of proving the original concept, they confirm that updates made for production still support function and usability.

Product Purpose Should Guide Manufacturing Choices

Manufacturing feedback can improve a product if handled well. Suppliers might suggest features or adjustments that help the tool, but the team must consider their impact on the product’s purpose. Changes should support performance requirements, such as protecting electronics or withstanding rough use.

Production pressure can rush decisions, and while suppliers may understand the process well, the product team must understand what the design needs to do after manufacturing.

The Stronger Question to Ask

Before tooling starts, the question shouldn’t stop at whether the part can be made. The stronger question asks whether the design can be manufactured in a way that still supports the product’s purpose.

Geometry Needs a Reason to Stay

Before starting tooling, each feature must justify its inclusion. Features should enhance strength, ensure alignment, or simplify service.

During the review, engineers can ask whether each feature still serves the product. A useful feature may stay with a cleaner shape or a better relationship to the tool. A weak feature may change because it adds production difficulty without adding enough value.

That review helps the team avoid tooling around old assumptions. A production design should carry forward the lessons from prototyping. It shouldn’t carry forward every decision made during the prototype phase.

Common Geometry Questions To Ask Before Tooling

A focused review may ask:

• Does this feature improve the product enough to justify tooling complexity?
• Does the part have enough draft for the intended process?
• Will the wall thickness support production without creating avoidable defects?
• Does the parting line create cosmetic or functional concerns?
• Would the supplier’s suggested change affect function, assembly, or field performance?

These questions keep the review grounded in function rather than preference.

Tolerances Should Come From Function

Tolerances can create trouble when they move into tooling without enough review. A drawing may show tight control because a prototype needed it or because the design team hadn’t revisited the number after testing. Before tooling, the team needs to confirm whether those choices still make sense.

Tolerance decisions should connect directly to how the product works. A dimension that controls fit deserves attention. A surface that affects sealing may need tighter control. A dimension that doesn’t influence performance may have room to relax.

That clarity helps the supplier understand the design intent. It also keeps the team from treating every tight number as equally meaningful. When the drawing shows where precision matters, manufacturing conversations become more focused and useful.

Stackups Need the Same Review

Assembly depends on tolerance discipline. A part can meet its drawing and still create problems when it joins the rest of the product. A pre-tooling review gives engineers a chance to catch those interactions before the tool makes change harder.

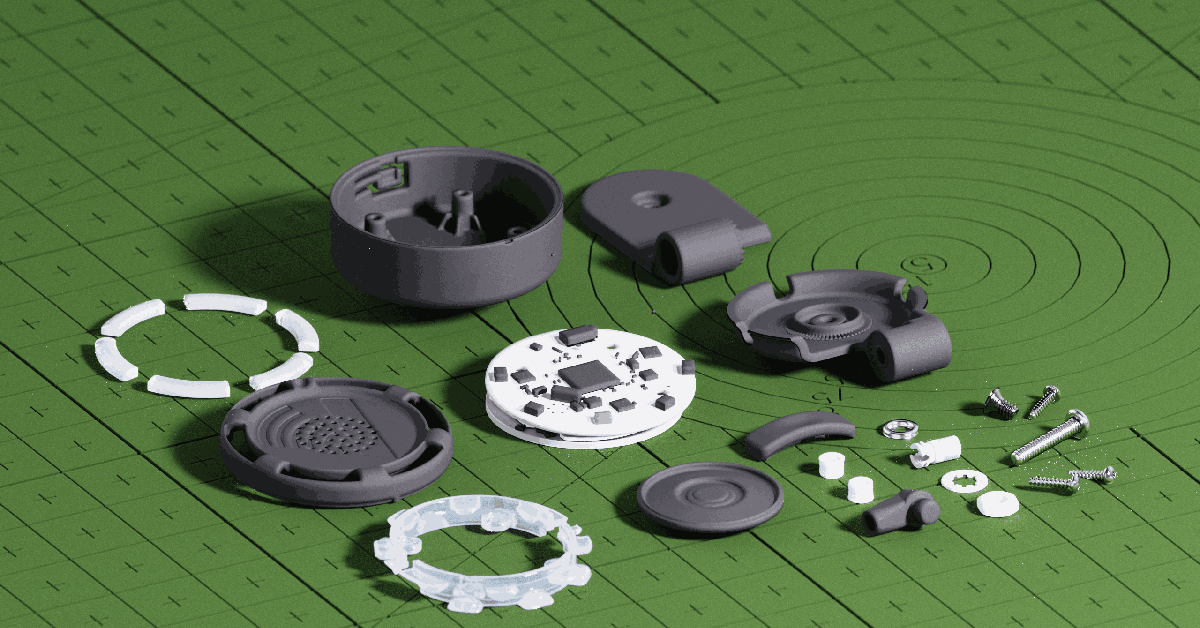

Assembly Should Shape the Review

A part can look right in CAD and still make production harder than it needs to be. Fasteners may sit in awkward places. Parts may need clearer alignment. Service access may feel like an afterthought.

The review should include how the product comes together during assembly. Engineers can study where the build may create friction and where a small design change could make the process cleaner. Those changes can improve the build without changing what the user sees.

That work often saves teams from treating assembly problems as production issues after the fact. In many cases, the source sits in the design. Reviewing the assembly before tooling helps the team address those causes before the project is under more pressure.

Supplier Feedback Works Best With Engineering Context

Good supplier feedback can catch problems that a CAD review may miss. A supplier may see how a feature could complicate the tool. They may also suggest a cleaner way to produce a feature.

The engineering team still needs to filter that feedback through product requirements. Suppliers usually view the design through the lens of the process they support. Product engineers need to weigh that process input against field performance and long-term reliability.

This creates a better conversation between those perspectives. The team doesn’t need to defend every original detail or accept every proposed change. It needs to decide whether a change supports production while keeping the product true to its purpose.

Better Tooling Starts Before the Tool Exists

Tooling problems often appear when the team has less room to respond. Purchasing may have started. Launch plans may have momentum. Internal teams may already expect the design to hold. At that point, even a small change can create stress across the project.

Design for manufacturing is crucial before tooling, as it provides product teams with a clearer path from a validated design to the manufacturing setup.
